STLINAC-4/6/600D-EL

STLINAC-4/6/600D-EL

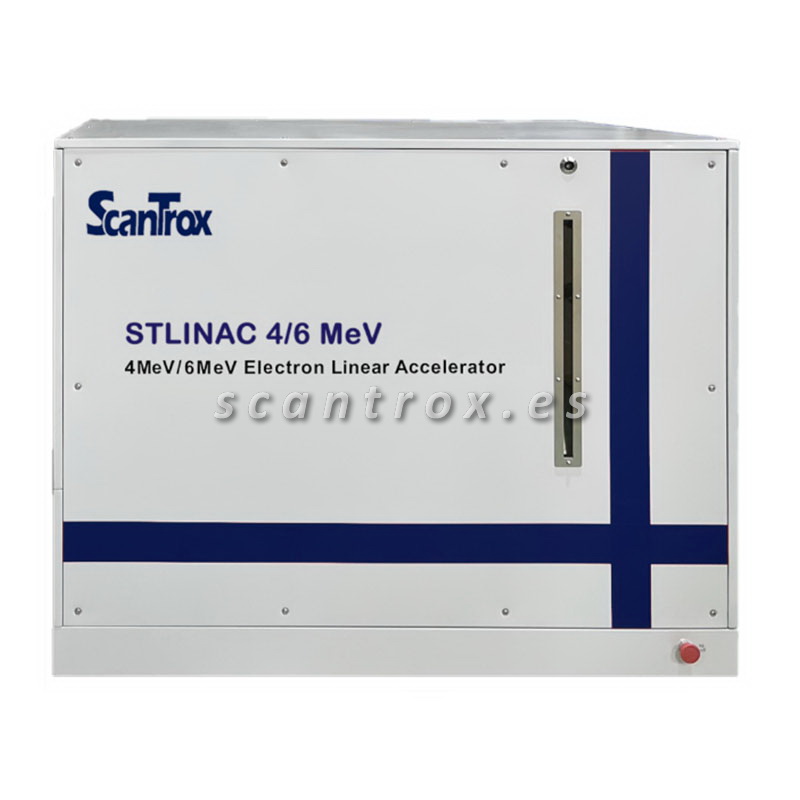

STLINAC-4/6/600D-EL is the S-band RF linear accelerator using on axis coupling accelerating structure, a revolutionary linear accelerator crafted by ScanTrox. Its compact design presents an innovative solution for space-constrained environments. Beyond its technical prowess, the ScanTrox S-band RF linac promises an extended durable lifespan, aligning with the demand for sustainable and long-lasting technological solutions. With its amalgamation of its advantages, this linear accelerator represents a right in the domain of truck and cargo scanning and NDT.

Category:

STLINAC-4/6/600D-EL

Technical Parameters.

Power/Setting/Size
Microwave Source  . . . . . . . . . . . . . . . . . Magnetron Magnetron . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.6 MW
Electron Beam Energy . . . . . . . . . . . . . . . . .4/6 MeV Frequency Repetition  . . . . . . . . . . . . . . . . . 50-400 Hz
X-ray Beam Dose Rate . .  . . . . . . . . . 350 cGy/min·m Operating Temperature   . . . . . . . . . . . . . . . . .5-40 ℃
X-ray Focal Spot Size . . . . . . . . . . . . . . . . . . . .≤2 mm Operating Humidity  . . . .  . .10-90% (non-condensing)
X-ray Flatness(@±7.5º). . . . . .  . . . . . . . . . . . ≥62 % Power Supply  . . . . . . . . . . . . . . .  . . . . . . . . . . .≥15 kW
X-ray Beam Asymmetry   . . .  . . . . . .  . . . . . . . ≤±5% Cable / Water Hose Length (m) . . . . . . . . 5 (standard)
Steel Thickness  . . . . . . . .  . . . . . . . . . . 50-350 mm Console Software . . . . . . . . . . . . . . . . . . . . . . Included
Sensitivity . . . . . . . . . .  .  . . . ASTM 1-2T (Hole type) Linac Head Size . . . . . . .  . . . . 1400 × 1000 × 900 mm3
Time of dose Stability     . . . . . . . . . . . . . . . . .  . ≤5 s TCU Size  (indoor) . . . . . . . . . .1000 × 620 × 1200 mm3
Leakage Radiation          . . . . . . . . . . . . . . . . ≤2×10-6 Modulator Size  . . . . . . . . . . . .630 × 800 × 1660 mm3
Regulatory Compliance . . . . . . . . . GB/T 20129-2015 Deionized Water/Coolant

Download: STLINAC-4/6/600D-EL Technical Specification
