STTube-4-6D-600 Linear Accelerator Tube

STTube-4/6D/600-EL

STTube-4/6D/600-EL

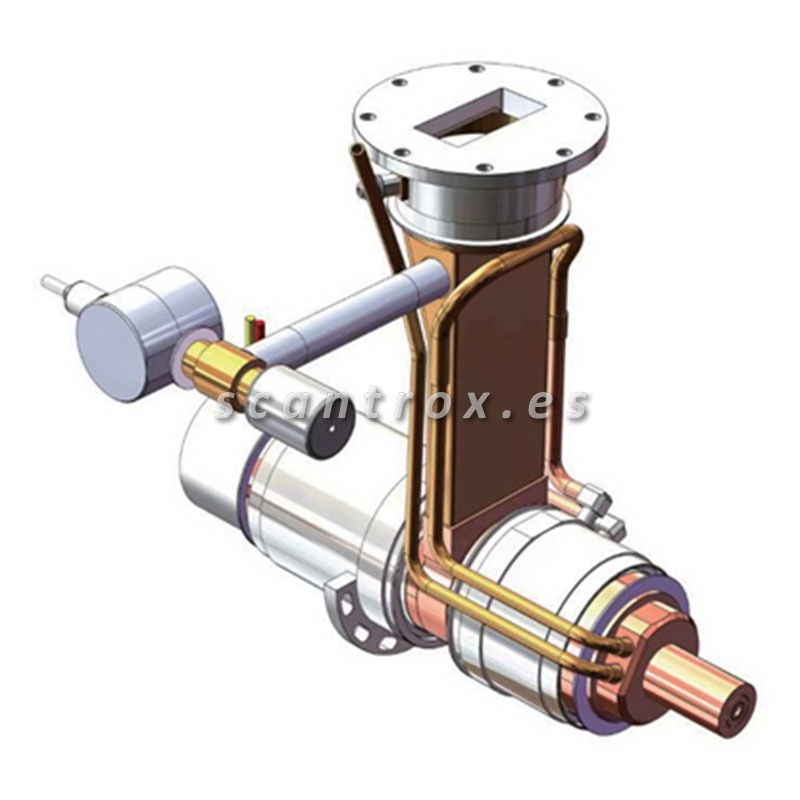

STTube-4/6D/600-EL is an S-band RF electron linear accelerator tube developed by ScanTrox, which adopts standing wave accelerating structure. It has the advantages of compact structure, high dose rate and stable performance, which can be widely used in industrial detection and security inspection. Its compact design presents an innovative solution for spaceconstrained
environments.

Category:

STTube-4/6D/600-EL

Technical Parameters.

Power/Setting/Size
Electron Beam Energy . . . . . . . . . . . . . . . . . . 4/6 MeV Magnetron Power. . . . . . . . . . . . . . . . . . . . . . . 2.6 MW
Dose Rate@6 MeV . . . . . . .. . . . . . . .  ≥300 cGy/min·m Input Power of the Tube. . . .  . . . . . . . . . . . . ≥2.3 MW
Dose Rate@4 MeV. . . . . . . . . . . . . . . . ≥150 cGy/min·m Pulse Width   . . . . . . . . . . . . . . . . . . . . . .     2.5-4.2 µ s
Dose Rate Stability . . . . . . . . . . . . . . . . . . . . . . . . .≤1% Duty Cycle  . . . .  . . . . . . . . . . . . . . . . . . . . 1.05 %(TYP)
Operation Frequency. . . . . .  . . . . . . . . .2998±1 MHz Ion Pump Voltage  . . . . . . . . . . . . .  . . . . . . 3.5-4.5 kV
E-Gun Voltage   . . .  . . . . . . . . . . . . . . . . . . . . . 6-23 kV Cooling Water Temperature . . . . . . . . . . . . . 25-40 ℃
Focal Spot Sizes  . . . . . . . .  . . . . . . . . . . . . . . .≤2 mm Filament Current . . . . . . . . . . . . . . . . . . . .    2.2±0.2 A
Overall Lenght . . . . . . . . . .  . . . . . . . . . . . . . . .≤410 mm Preheating Time. . . . . . . . . . . . . . . . . . . . . . . . ≥3 min
Reserved Target Current Measuring Interface . . .Option

Mechanical Structure
RF Window Flange. . . . . . . . . FAP 32(TYP)
Mounting Flange . . . . . . . . .  Customized

Download: STTube-4/6D/600-EL Technical Specification
